T2000 FM automatic

T2000 FM automatic; Océanic, ITT Océanic (ID = 1844838) Radio T2000 FM automatic; Océanic, ITT Océanic (ID = 1844839) Radio
T2000 FM automatic; Océanic, ITT Océanic (ID = 1844840) Radio T2000 FM automatic; Océanic, ITT Océanic (ID = 1844841) Radio
Use red slider bar for more.

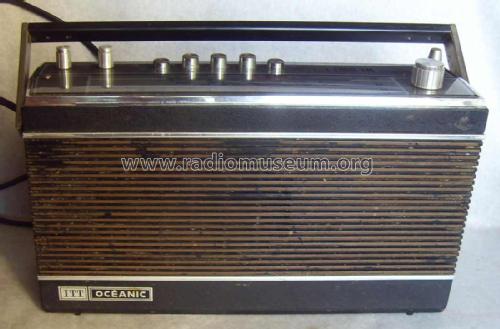

T2000 FM automatic; Océanic, ITT Océanic (ID = 1844838) Radio
Océanic, ITT Océanic: T2000 FM automatic [Radio] ID = 1844838 1100x725
Select picture or schematic to display from thumbnails on the right and click for download.
For model T2000 FM automatic, Océanic, ITT Océanic; Paris:
ebay.fr #331574314079 seller capitaine_castagnette

Country:  France
Manufacturer / Brand:  Océanic, ITT Océanic; Paris
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) AF106 AF124 AF136 AF138 AF137 BC252 BC172 AC179 AC178 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: T2000 FM automatic - Océanic, ITT Océanic; Paris
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 175 x 80 mm / 12.6 x 6.9 x 3.1 inch
Notes

4 gammes d'ondes:

  • FM: 87 - 104 MHz
  • OC: 5,8 - 7,8 MHz
  • PO: 510 - 1620 kHz
  • GO: 145 - 287 kHz

Made in Germany.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Mentioned in -- Schematic

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Océanic, ITT Océanic; Paris
Here you find 147 models, 123 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
