5P-12X

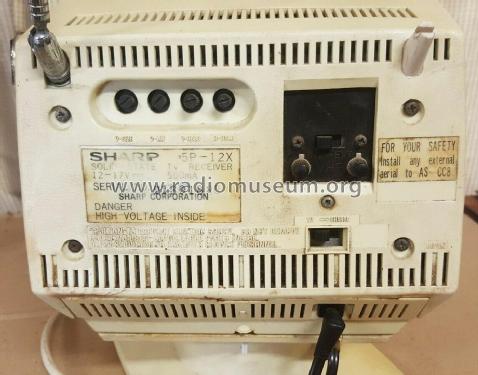

5P-12X; Olims-Hayakawa (ID = 2362619) Television 5P-12X; Olims-Hayakawa (ID = 2362620) Television
5P-12X; Olims-Hayakawa (ID = 2362621) Television 5P-12X; Olims-Hayakawa (ID = 2362622) Television
Use red slider bar for more.
5P-12X; Olims-Hayakawa (ID = 2362619) Television
Olims-Hayakawa: 5P-12X [Television] ID = 2362619 1307x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5P-12X, Olims-Hayakawa Electronics Pty Ltd, (Sharp), Sydney:
From ebay au seller tlccustoms81. #Item 254125069701

Country:  Australia
Manufacturer / Brand:  Olims-Hayakawa Electronics Pty Ltd, (Sharp), Sydney
Year: 1975–1977 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 140ADB4 or 140ALB4
Semiconductors (the count is only for transistors) 26:
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / 240/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: 5P-12X - Olims-Hayakawa Electronics Pty
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Portable 5" mains or battery powered B/W portable television receiver with Australian standard 13-channel tuner.

Made in Japan.

Price in first year of sale 189.00 AUS $
Literature/Schematics (1) J.R. Publications Television Service Handbook (Group 18, December 1975, Page S87.)

Model page created by Martin Kent. See "Data change" for further contributors.
