Regulated Power Supply LS 120 R

Oltronix; Leek

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 234993

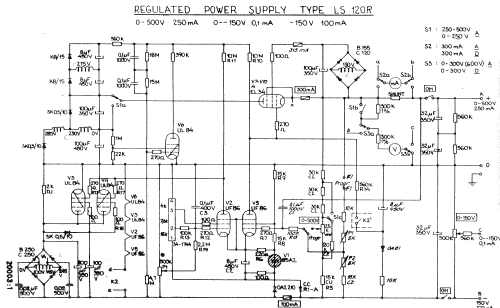

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Wave bands
  • - without
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Regulated Power Supply LS 120 R - Oltronix; Leek
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 482 x 132 x 350 mm / 19 x 5.2 x 13.8 inch
  • Notes
  • Output A: 0-500 V; 0-250 mA
    Output B: -150 V fixed; 0-100 mA
    Output C: 0 - -150 V, high impedance derived from B
    Output D: 0-170V; 0-100 mA
    Output E: 6.3 V; 6 A
    Output F: 6.3 V; 2 A

    Remote Programming:
    The output A can be controlled externally by connecting a resistor between E and F. Programming constant is 200 ohms/volt.

  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Schematic
