• Year
  • 1957 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 245098

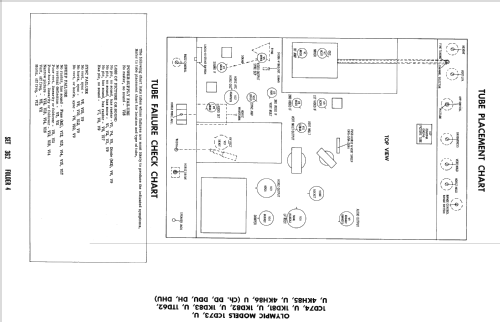

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • from Radiomuseum.org
  • Model: 1CD74 Ch= DD - Olympic Radio & Television,
  • Notes
  • The Olympic 1CD74 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis DD and picture tube 21AMP4A.

  • Literature/Schematics (1)
  • ROU:Revista "Corriente Alterna" Nº 523
