6-503

6-503 ; Olympic Radio & (ID = 474897) Radio

6-503 ; Olympic Radio & (ID = 474934) Radio

6-503 ; Olympic Radio & (ID = 474935) Radio

6-503 ; Olympic Radio & (ID = 474937) Radio

6-503 ; Olympic Radio & (ID = 474938) Radio
Use red slider bar for more.
6-503 ; Olympic Radio & (ID = 474897) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Olympic Radio & Television, Inc.; New York (NY)
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 6-503 - Olympic Radio & Television,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.

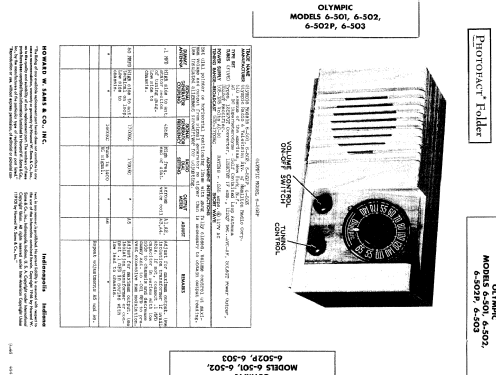

Notes Sams photofact, set 4, folder 464-10, date 9-46, features the Olympic models 6-501, 6-502, 6-502P and 6-503 as the same schematic.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before

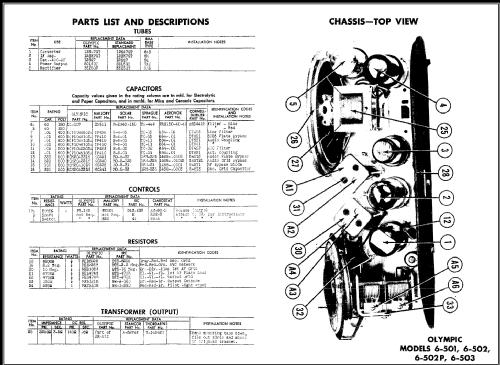

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 9-46, set 4, folder 464-10)


All listed radios etc. from Olympic Radio & Television, Inc.; New York (NY)
Here you find 508 models, 212 with images and 458 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
