• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232939

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1,5 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• from Radiomuseum.org
• Model: 8-451 - Olympic Radio & Television,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Battery Operated Portable Superheterodyne Receiver with Loop Antenna

  AM: 540-1600kc.

• Mentioned in

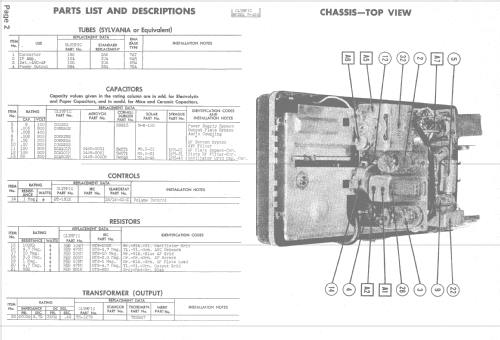

• Photofact Folder, Howard W. SAMS (4818-15 Set 48 Folder 15)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
