• Year
  • 1958
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 185424

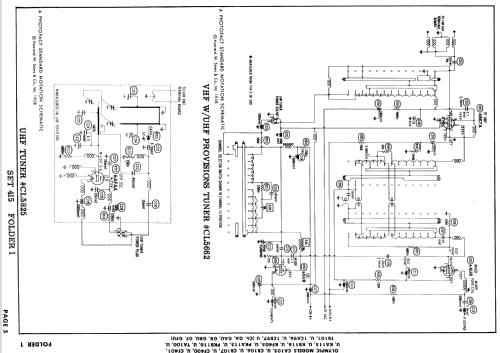

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: CB106 Ch= GB - Olympic Radio & Television,
  • Notes
  • 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF. Some models are available with 24" Picture Tube 21AEP4.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
