Pearlcorder Dictator/Transcriber DT-1000

Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051643) R-Player Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051636) R-Player
Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051637) R-Player Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051638) R-Player
Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051639) R-Player Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051640) R-Player
Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051642) R-Player Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051644) R-Player
Use red slider bar for more.

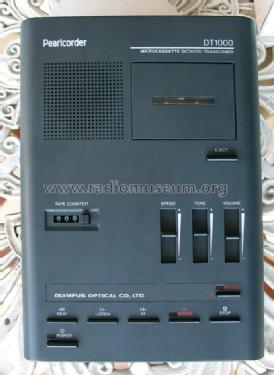

Pearlcorder Dictator/Transcriber DT-1000; Olympus Co.; Tokyo (ID = 1051643) R-Player
Olympus Co.; Tokyo: Pearlcorder Dictator/Transcriber DT-1000 [R-Player] ID = 1051643 683x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pearlcorder Dictator/Transcriber DT-1000, Olympus Co.; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Olympus Co.; Tokyo
Year: 1994 ? Category: Sound/Video Recorder and/or Player
Main principle Audio-Amplification
Wave bands - without
Details Special Tape or Cassette-Format
Power type and voltage Powered by external power supply or a main unit. / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Pearlcorder Dictator/Transcriber DT-1000 - Olympus Co.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 170 x 78 x 240 mm / 6.7 x 3.1 x 9.4 inch
Notes Features:
Easy-To-Access Controls
Adjustable Tape Speed (-15% - +30%) & Tone Control
Adjustable Auto Backspace
Quick Erase
Dual Tape Speeds (2.4 cm/sec. & 1.2 cm/sec.)
Conference/Dictation Microphone Sensitivity
Adjustable Auto Backspace
Built-In Speaker for Group Listening
Telephone Conversation Recording (Utilizes Optional Telephone Pick-Up)(TP3)
End of Tape Alarm
Digital Tape Counter
Attractive Design That Matches Office Environment
Easy-To-Use Hand Controller (Dict, Listen, Stop, Rewind & Fast Forward)(MR9)
3-Pedal Foot Control (Listen, Fast Forward & Rewind)(RS19)
Dual-Speaker Headset For Comfort and Excellent Sound Quality (E99)
Specifications:
Tape: Microcassette
Tape Speed: 2.4 cm/sec. & 1.2 cm/sec. adjustable - -15% to +30%
Speaker: 57 mm dynamic speaker
Power Source: DC 9V 800 mA (AC adapter)
Frequency Response: 250 ~ 4,000 Hz at 2.4 cm/sec.
Practical Max. Output: 250 mW (2.4 cm/sec.)
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
