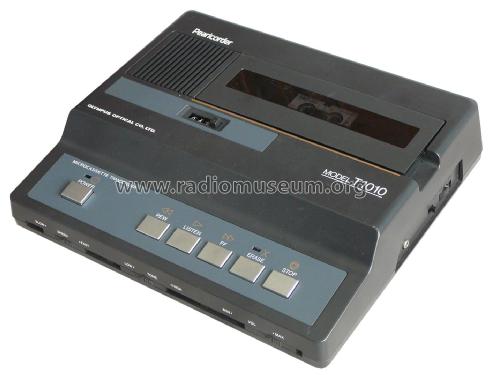

Pearlcorder Microcassette Transcriber T1010

Pearlcorder Microcassette Transcriber T1010; Olympus Co.; Tokyo (ID = 2307470) R-Player Pearlcorder Microcassette Transcriber T1010; Olympus Co.; Tokyo (ID = 2307471) R-Player
Pearlcorder Microcassette Transcriber T1010; Olympus Co.; Tokyo (ID = 2307472) R-Player Pearlcorder Microcassette Transcriber T1010; Olympus Co.; Tokyo (ID = 2307473) R-Player
Pearlcorder Microcassette Transcriber T1010; Olympus Co.; Tokyo (ID = 2307474) R-Player
Use red slider bar for more.
Pearlcorder Microcassette Transcriber T1010; Olympus Co.; Tokyo (ID = 2307470) R-Player
Olympus Co.; Tokyo: Pearlcorder Microcassette Transcriber T1010 [R-Player] ID = 2307470 1400x1075
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pearlcorder Microcassette Transcriber T1010, Olympus Co.; Tokyo

Country:  Japan
Manufacturer / Brand:  Olympus Co.; Tokyo
Year: 1990 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Special Tape or Cassette-Format
Power type and voltage Powered by external power supply or a main unit. / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out 0.25 W (max.)
from Radiomuseum.org Model: Pearlcorder Microcassette Transcriber T1010 - Olympus Co.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 55.5 x 215 mm / 9.8 x 2.2 x 8.5 inch
Notes

Microcassette Transcription Transcribing Machine.

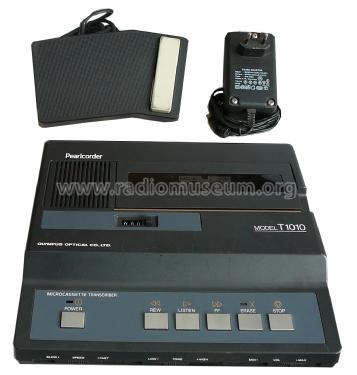

The unit comes with headset, foot control switch and AC adaptor.
Features include adjustable speed, tone, volume, backspace, counter, speakerphone, REW, FF, stop, play, erase buttons.
Tape Speed 1.2 cm/sec & 2.4 cm/sec, speed control buttons.







Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Mentioned in - - Manufacturers Literature (Instruction Manual)

Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.



All listed radios etc. from Olympus Co.; Tokyo
Here you find 39 models, 37 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
