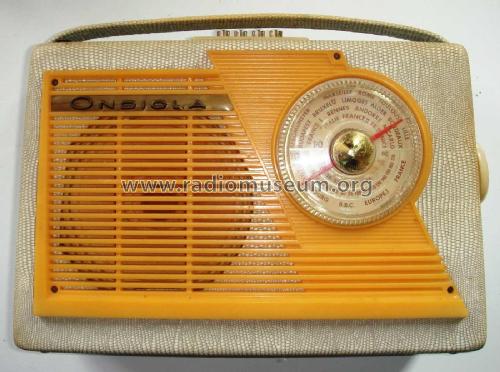

Cadet 3G

Ondiola; Neuilly-sur-Seine, Bois-Colombe, Paris

Data
Forum
Pictures
Collections

  • Year
  • 1962 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 282845

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 2 x 4.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Cadet 3G - Ondiola; Neuilly-sur-Seine,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 250 x 165 x 75 mm / 9.8 x 6.5 x 3 inch
  • Notes

  • 6 transistors + 1 diode. 3 gammes d'ondes : PO, GO et OC de 19 à 51 m. Cadre ferrox-cube de 200 mm, antenne télescopique pour OC. Prise antenne voiture.

    Coffret gainé 5 coloris.

  • Mentioned in
  • -- Original prospect or advert
