2-Way Speaker System 5C

2-Way Speaker System 5C; Onkyo, Osaka Denki (ID = 1897983) Speaker-P 2-Way Speaker System 5C; Onkyo, Osaka Denki (ID = 1897984) Speaker-P
Use red slider bar for more.

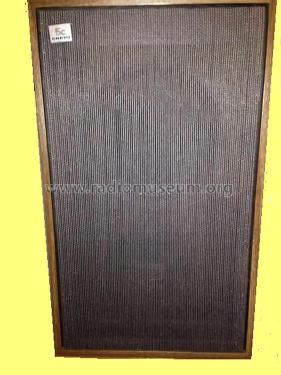

2-Way Speaker System 5C; Onkyo, Osaka Denki (ID = 1897983) Speaker-P
Onkyo, Osaka Denki: 2-Way Speaker System 5C [Speaker-P] ID = 1897983 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-Way Speaker System 5C, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Ebay Auction

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1972 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 2-Way Speaker System 5C - Onkyo, Osaka Denki Onkyo K.K.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 290 x 486 x 322 mm / 11.4 x 19.1 x 12.7 inch
Notes

Onkyo 2-Way 2-Speaker System Model 5C.
Bass Reflex Type
Power Handling 30 Watts
45 - 20000Hz, 8 Ohms
CrossOver 1500Hz - 12dB/Oct.
Detachable Grille
Drivers:
1x 200mm Woofer
1x 80mm Tweeter

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Onkyo, Osaka Denki Onkyo K.K.; Osaka
Here you find 623 models, 599 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
