A-05

A-05; Onkyo, Osaka Denki (ID = 559099) Ampl/Mixer A-05; Onkyo, Osaka Denki (ID = 1844045) Ampl/Mixer
A-05; Onkyo, Osaka Denki (ID = 1844046) Ampl/Mixer A-05; Onkyo, Osaka Denki (ID = 1844047) Ampl/Mixer
Use red slider bar for more.
A-05; Onkyo, Osaka Denki (ID = 559099) Ampl/Mixer
Onkyo, Osaka Denki: A-05 [Ampl/Mixer] ID = 559099 933x305
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-05, Onkyo, Osaka Denki Onkyo K.K.; Osaka:

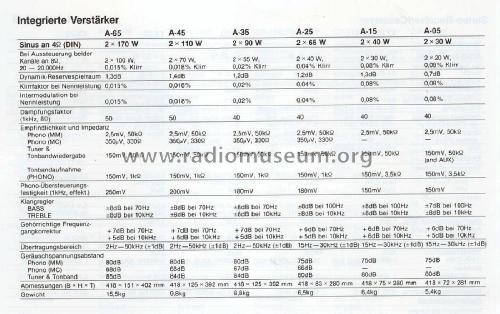

Original prospekt in 1981.

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1981 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: A-05 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 418 x 72 x 281 mm / 16.5 x 2.8 x 11.1 inch
Notes Stereo-Vollverstärker mit 2 x 30 Watt Sinus an 4 Ohm.
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
