AV Receiver TX-DS575

AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235593) Ampl/Mixer AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235589) Ampl/Mixer

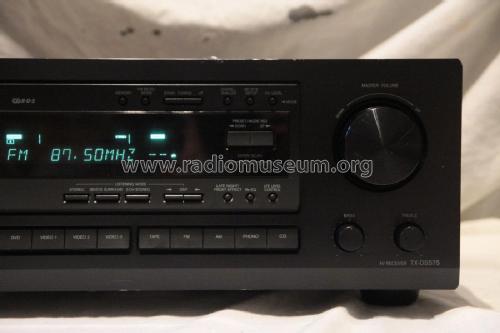

AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235591) Ampl/Mixer AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235592) Ampl/Mixer
AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235595) Ampl/Mixer AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235596) Ampl/Mixer
AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235597) Ampl/Mixer
Use red slider bar for more.
AV Receiver TX-DS575; Onkyo; Osaka (ID = 2235593) Ampl/Mixer
Onkyo; Osaka: AV Receiver TX-DS575 [Ampl/Mixer] ID = 2235593 1400x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model AV Receiver TX-DS575, Onkyo; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo; Osaka
Year: 2000/2001 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AV Receiver TX-DS575 - Onkyo; Osaka
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 175 x 390 mm / 17.1 x 6.9 x 15.4 inch
Notes

Tuning range: FM, MW
Power output: 70 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 2.5mV (MM), 300mV (line)
Signal to noise ratio: 80dB (MM), 100dB (line)
Output: 300mV (line), 1V (Pre out)
Speaker load impedance: 6Ω (minimum)
Digital inputs: coaxial, optical
Video Connections: composite, SVHS
Accessories: RC-392M remote control

See also model TX-DS575X

Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
