Compact Disc Player DX-7222
Use red slider bar for more.

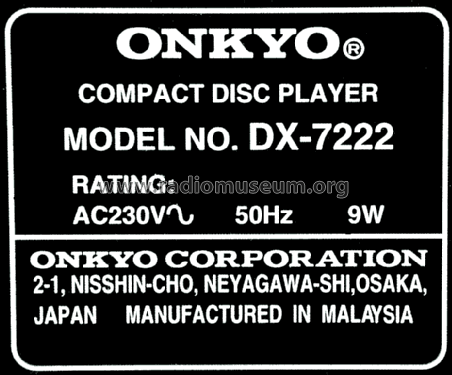

Onkyo, Osaka Denki: Compact Disc Player DX-7222 [R-Player] ID = 839092 933x485
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 2000 ?? | Category: Sound/Video Recorder and/or Player | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | CD-Player, -Writer, MD, MOD (audio) |
| Power type and voltage | Alternating Current supply (AC) / 230 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Compact Disc Player DX-7222 - Onkyo, Osaka Denki Onkyo K.K.; |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 435 x 90 x 300 mm / 17.1 x 3.5 x 11.8 inch |
| Net weight (2.2 lb = 1 kg) | 3.950 kg / 8 lb 11.2 oz (8.7 lb) |
| Source of data | - - Data from my own collection |
Model page created by a member from D. See "Data change" for further contributors.
