Integra Stereo Power Amplifier M-504

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067079) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067089) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067090) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067091) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067092) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067093) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067094) Ampl/Mixer

Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067095) Ampl/Mixer
Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067077) Ampl/Mixer
Use red slider bar for more.
Integra Stereo Power Amplifier M-504; Onkyo, Osaka Denki (ID = 2067077) Ampl/Mixer
Onkyo, Osaka Denki: Integra Stereo Power Amplifier M-504 [Ampl/Mixer] ID = 2067077 1400x881
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integra Stereo Power Amplifier M-504, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Onkyo Catalogue

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1987–1997 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 330 W (undistorted)
from Radiomuseum.org Model: Integra Stereo Power Amplifier M-504 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 465 x 185 x 422 mm / 18.3 x 7.3 x 16.6 inch
Notes

Onkyo Stereo Power Amplifier Model M-504.
Power output: 165 watts per channel into 8Ω (stereo)
Frequency response: 1Hz to 100 kHz
Total harmonic distortion: 0.003%
Damping factor: 140
Input sensitivity: 1V
Signal to noise ratio: 120dB
AC Outlet 1x Unswitched 100 Watts max.
Power Consumption: 1000VA

Net weight (2.2 lb = 1 kg) 22.5 kg / 49 lb 9 oz (49.559 lb)
Mentioned in - - Manufacturers Literature (Onkyo Catalogue - 'Audio Video' and 'High Fidelity')

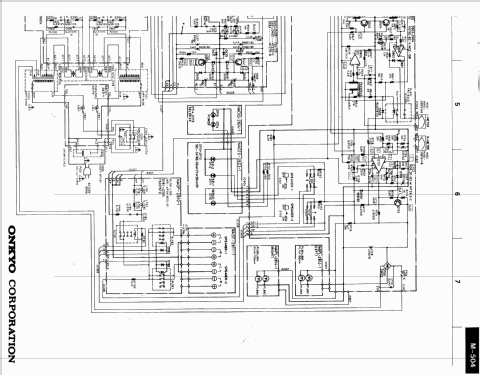

Literature/Schematics (1) - - Manufacturers Literature (Service Manual)
