Integrated Stereo Amplifier A-8150

Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696761) Ampl/Mixer Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696762) Ampl/Mixer
Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696763) Ampl/Mixer Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696764) Ampl/Mixer
Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696765) Ampl/Mixer Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696766) Ampl/Mixer
Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696767) Ampl/Mixer Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696768) Ampl/Mixer
Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696769) Ampl/Mixer Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696770) Ampl/Mixer
Use red slider bar for more.

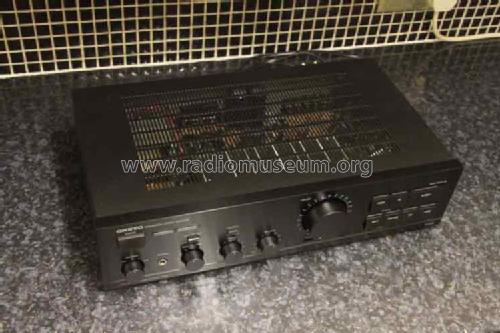

Integrated Stereo Amplifier A-8150; Onkyo, Osaka Denki (ID = 1696761) Ampl/Mixer
Onkyo, Osaka Denki: Integrated Stereo Amplifier A-8150 [Ampl/Mixer] ID = 1696761 750x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier A-8150, Onkyo, Osaka Denki Onkyo K.K.; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1983 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (undistorted)
from Radiomuseum.org Model: Integrated Stereo Amplifier A-8150 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 110 x 272 mm / 17.1 x 4.3 x 10.7 inch
Notes

Power out: 2x 60W at 8Ohms

Frequency response: 15Hz to 30kHz

Total harmonic distortion: 0.06%

Damping factor: 40

Input sensitivity: 0.35mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 83dB (MM), 95dB (line)

Net weight (2.2 lb = 1 kg) 7.1 kg / 15 lb 10.2 oz (15.639 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
