Integrated Stereo Amplifier A-8430

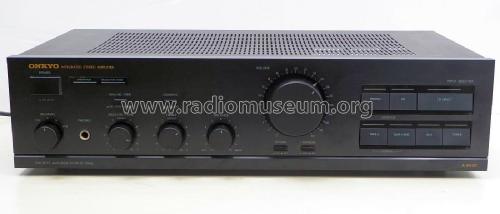

Onkyo Integrated Stereo Amplifier, Model A-8430
60 W per channel stereo hi-fi amplifier.
Available in a black or silver cabinet.

Technical specifications

• Continuous output (with distortion factor)
• 8 Ω:  2x 60 watts <= 0.06 %
• 4 Ω: 2x 80 watts
• Total harmonic distortion: 0.06%
• Damping factor: 40 (at 8 Ω)
• Frequency response: 15 - 30,000 Hz ± 1 dB
• Signal-to-noise ratio Phono MM: 83 dB (IHF A), 5 mV input
• Signal-to-noise ratio CD & tape: 95 dB (IHF A)
• Stereo channel separation:
• Tone control:
• Bass: ± 10 dB at 100 Hz
• Treble: ± 10 dB at 10 kHz
• Loudness: yes (+ 7 dB at 70 Hz, + 5 dB at 10 kHz)
• High Filter: No.
• Low Filter (Subsonic): No.
• Mute: Yeah
• Direct / Line-Straight: Yes


Connections

Inputs

• Number of inputs: 6
• Phono-MM: 2.5 mV / 50 kΩ
• Phono-MC: 350 mV / 330 Ω
• Tuner, CD, Aux, 2x tape: 150 mV / 50 kΩ

Sinusleistung:
 60 Watt min., effektiv, an 8 ohm, beide Kanäle ausgesteuert.
 20 Hz bis 20 kHz. bei einem Gesamtkirrfaktor von höchstens 0.06%

Empfindlichkeit und Impedanz:
PHONO (MM): 2,5 mV/50 kohm
PHONO (MC): 350 6V/330 ohm
TUNER/CD/AUX: 150 mV/50 kohm
TAPE/PLAY: 150 mV/50 kohm
TAPE/REC: 150 1V14.5 kohm (Phono)

Geräuschspannungsabstand:
PHONO (MM): 83 dB (IHF A), 5 mV Eingang
CD & TAPE: 95 dB (IHF A)
