Integrated Stereo Amplifier A-9510

Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801769) Ampl/Mixer Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801762) Ampl/Mixer
Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801763) Ampl/Mixer Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801764) Ampl/Mixer
Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801765) Ampl/Mixer Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801767) Ampl/Mixer
Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801768) Ampl/Mixer
Use red slider bar for more.
Integrated Stereo Amplifier A-9510; Onkyo, Osaka Denki (ID = 1801769) Ampl/Mixer
Onkyo, Osaka Denki: Integrated Stereo Amplifier A-9510 [Ampl/Mixer] ID = 1801769 1277x582
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier A-9510, Onkyo, Osaka Denki Onkyo K.K.; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1999 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (260 W max.)
from Radiomuseum.org Model: Integrated Stereo Amplifier A-9510 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 455 x 155 x 348 mm / 17.9 x 6.1 x 13.7 inch
Notes

- Integrated Stereo Amplifier

- Control Balance - Bass - Treble

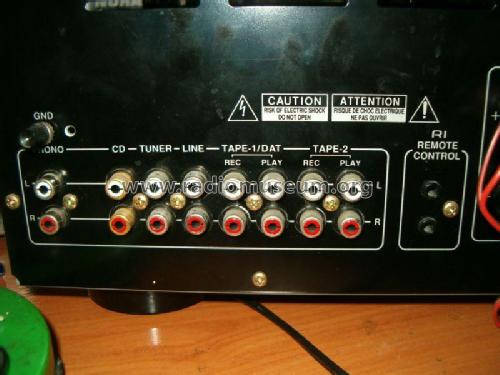

- Imputs: Tape 1 , Tape2, Line, CD, Tuner and Phono

- Rec Selector: Tape 1, Tape2, Line, CD, Tuner and Phono

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)

Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.



All listed radios etc. from Onkyo, Osaka Denki Onkyo K.K.; Osaka
Here you find 623 models, 599 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
