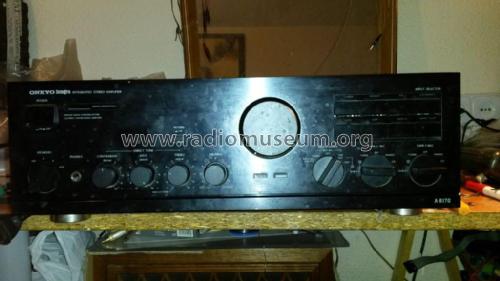

Integrated Stereo Amplifier Integra A-8170; Onkyo, Osaka Denki (ID = 2009657) Ampl/Mixer
Onkyo, Osaka Denki: Integrated Stereo Amplifier Integra A-8170 [Ampl/Mixer] ID = 2009657 1024x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier Integra A-8170, Onkyo, Osaka Denki Onkyo K.K.; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1987–1989 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 or 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 160 W (unknown quality)
from Radiomuseum.org Model: Integrated Stereo Amplifier Integra A-8170 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 147 x 388 mm / 17.1 x 5.8 x 15.3 inch
Notes

- Power output: 80 W per channel

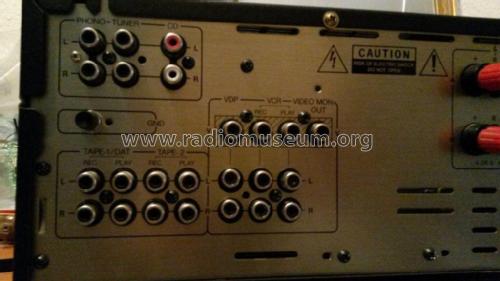

- Input: Tuner, Phono, CD, Tape 1 and 2, VCR and AUX
- Out: Line, VCR and Monitor
- Speaker A and B



Net weight (2.2 lb = 1 kg) 11.2 kg / 24 lb 10.7 oz (24.67 lb)
Literature/Schematics (4) -- Schematic

Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
