MX3

MX3; Onkyo, Osaka Denki (ID = 679720) Speaker-P
Use red slider bar for more.
MX3; Onkyo, Osaka Denki (ID = 679720) Speaker-P

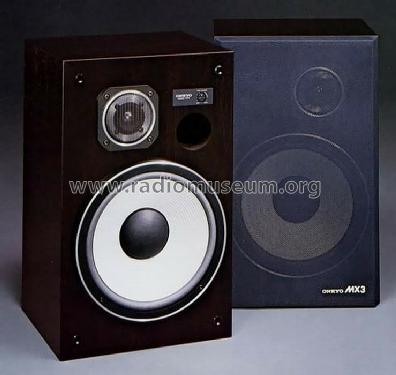

Onkyo, Osaka Denki: MX3 [Speaker-P] ID = 679720 741x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model MX3, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Prospekt

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1979 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: MX3 - Onkyo, Osaka Denki Onkyo K.K.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 320 x 518 x 305 mm / 12.6 x 20.4 x 12 inch
Notes 2-Weg-Bassreflex-Box, 80 Watt Musik, 6 Ohm, 30 - 20.000Hz, 90dB/W/m. Trennfrequenz bei 1.500Hz.
300mm TT, 120mm MT, HT
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
