Network Stereo Receiver TX-8150
Onkyo, Osaka Denki Onkyo K.K.; Osaka
- Country
- Japan
- Manufacturer / Brand
- Onkyo, Osaka Denki Onkyo K.K.; Osaka
- Year
- 2015
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 326565
Internet
Onkyo Internet catalog

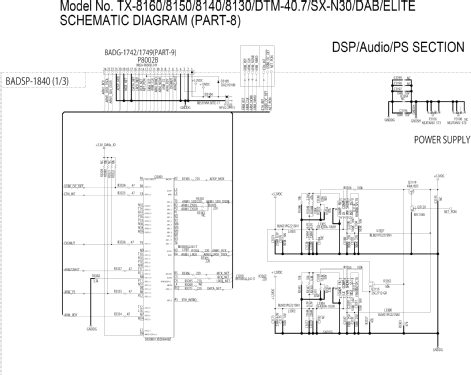

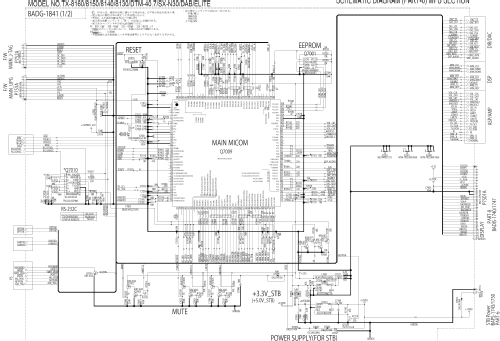

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Network Stereo Receiver TX-8150 - Onkyo, Osaka Denki Onkyo K.K.;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 435 x 149 x 328 mm / 17.1 x 5.9 x 12.9 inch
- Notes
-
Onkyo Network Stereo Receiver TX-8150
- Amplifier 135 W
- Tuner FM / DAB y DAB +
- 6 Line inputs + 1 Phono
- 4 Digital inputs, 2 optical & 2 coaxial, plus WiFi, Bluetooth and Ethernet
- Headphone output
- Four Speakers and Subwoofer output
- USB port ( mp3 y WAV )
- Remote control RC-940S
Similar to TX-8140 and TX-8160
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Author
- Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
