Quartz Locked Stereo Tuner T-9

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 1708763) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 1708764) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 1708766) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453795) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453796) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453797) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453798) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453799) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453800) mod-past25

Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453801) mod-past25
Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453670) mod-past25 Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453671) mod-past25
Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453672) mod-past25 Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453673) mod-past25
Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 1708476) mod-past25
Use red slider bar for more.
Quartz Locked Stereo Tuner T-9; Onkyo, Osaka Denki (ID = 2453670) mod-past25

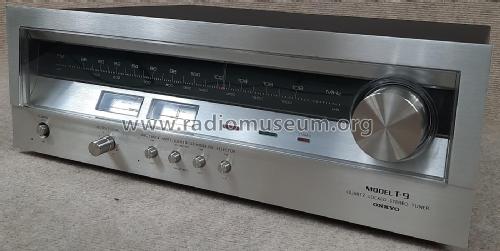

Onkyo, Osaka Denki: Quartz Locked Stereo Tuner T-9 [mod-past25] ID = 2453670 1400x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quartz Locked Stereo Tuner T-9, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Ebay UK auction item_233377332954 seller newandretro612

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1982 ? Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 46:
Main principle PLL, Phase-locked loop; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Quartz Locked Stereo Tuner T-9 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 444 x 159 x 380 mm / 17.5 x 6.3 x 15 inch
Notes

Rundfunk Empfänger, Quartz Locked Stereo Tuner T-9, Onkyo, Deutschland

UKW/MW HiFi-Tuner der Spitzenklasse mit Quarz-Synchronisation (PLL) und automatischer Feinabstimmung nach Loslassen des Abstimmknopfes.
2 Zeigerinstrumente für Feldstärke- und Mittenabstimm-Anzeige.
Dual-gate MOS-FET in der Eingangsstufe (UKW-Eingangsempfindlichkeit 1,3 µV).

Frequenzbereich

  • UKW = 87,5 MHz - 108 MHz
  • MW =  530 - 1605 kHz

NF-Frequenzgang: UKW = 30 - 15000 Hz, Fremdspannungsabstand: UKW-Stereo  = 65 dB, MW = 45 dB,

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Mentioned in Onkyo - Datenblatt/Prospekt 1983

Model page created by Reinhard Keins. See "Data change" for further contributors.



All listed radios etc. from Onkyo, Osaka Denki Onkyo K.K.; Osaka
Here you find 623 models, 599 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
