• Country
• Japan

• Manufacturer / Brand
• Onkyo, Osaka Denki Onkyo K.K.; Osaka

• Year
• 1991 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 249675

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

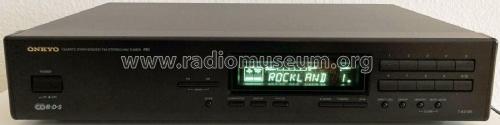

• Model: Quartz Synthesized FM Stereo / AM Tuner T-4210R - Onkyo, Osaka Denki Onkyo K.K.;

• Shape
• Book-shelf unit.

• Notes

• RDS tuner, 30 preeselect.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
