Quartz Synthesized Tuner Amplifier TX-7720

Quartz Synthesized Tuner Amplifier TX-7720; Onkyo, Osaka Denki (ID = 1246759) Radio
Use red slider bar for more.
Quartz Synthesized Tuner Amplifier TX-7720; Onkyo, Osaka Denki (ID = 1246759) Radio

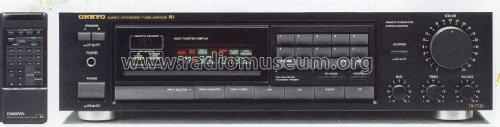

Onkyo, Osaka Denki: Quartz Synthesized Tuner Amplifier TX-7720 [Radio] ID = 1246759 933x237
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quartz Synthesized Tuner Amplifier TX-7720, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
aus Original Prospekt

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1990/1991 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: Quartz Synthesized Tuner Amplifier TX-7720 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 115 x 320 mm / 17.1 x 4.5 x 12.6 inch
Notes Onkyo Quartz Synthesized Tuner Amplifier TX-7720,
2 x 50 Watt Sinusleistung (4 Ohm),
2 x 95 Watt Musikleistung (4 Ohm),
2 x 40 Watt Sinusleistung (8 Ohm).
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Source of data -- Original prospect or advert

Model page created by Achim Eisenhuth. See "Data change" for further contributors.
