Quartz Synthesized Tuner Amplifier TX-902

Quartz Synthesized Tuner Amplifier TX-902; Onkyo, Osaka Denki (ID = 2329451) Radio Quartz Synthesized Tuner Amplifier TX-902; Onkyo, Osaka Denki (ID = 2329452) Radio
Use red slider bar for more.

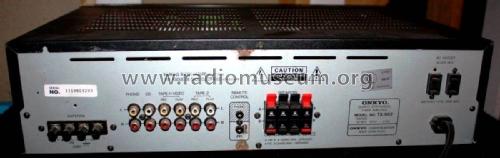

Quartz Synthesized Tuner Amplifier TX-902; Onkyo, Osaka Denki (ID = 2329451) Radio
Onkyo, Osaka Denki: Quartz Synthesized Tuner Amplifier TX-902 [Radio] ID = 2329451 1300x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quartz Synthesized Tuner Amplifier TX-902, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Ebay.com auction item 253995736662 seller fromthebasementofdansmom

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1994 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: Quartz Synthesized Tuner Amplifier TX-902 - Onkyo, Osaka Denki Onkyo K.K.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 455 x 120 x 316 mm / 17.9 x 4.7 x 12.4 inch
Notes AM/FM Stereo Receiver, 2x 50 watts per channel RMS into 8 ohms (40 - 20000Hz, 0,2% THD).
Remote control transmitter RC-183S/RC-184S (2x AA batteries, 2 x 1,5V)
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Source of data - - Manufacturers Literature

Model page created by Franz Scharner. See "Data change" for further contributors.
