R-811RDS

R-811RDS; Onkyo; Osaka (ID = 381677) Radio R-811RDS; Onkyo; Osaka (ID = 381679) Radio
R-811RDS; Onkyo; Osaka (ID = 381680) Radio R-811RDS; Onkyo; Osaka (ID = 381678) Radio
R-811RDS; Onkyo; Osaka (ID = 381682) Radio R-811RDS; Onkyo; Osaka (ID = 381685) Radio

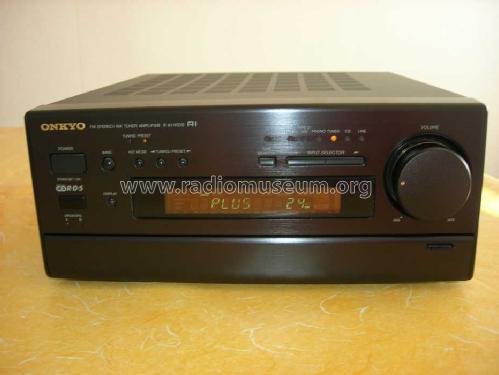

R-811RDS; Onkyo; Osaka (ID = 381688) Radio R-811RDS; Onkyo; Osaka (ID = 381689) Radio
R-811RDS; Onkyo; Osaka (ID = 381702) Radio
Use red slider bar for more.
R-811RDS; Onkyo; Osaka (ID = 381677) Radio
Onkyo; Osaka: R-811RDS [Radio] ID = 381677 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-811RDS, Onkyo; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo; Osaka
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: R-811RDS - Onkyo; Osaka
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 275 x 118 x 336 inch / 6985 x 2997 x 8534 mm
Notes Stereo-Receiver R-811RDS;
2× 50 W at 4 Ω, 1 kHz (DIN); Frequency response 20 Hz to 20 kHz, ±0,8 dB.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Source of data - - Data from my own collection

Model page created by Emile Stauber. See "Data change" for further contributors.
