Speaker System D-302E

Onkyo, Osaka Denki Onkyo K.K.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 2006
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 281557

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Speaker System D-302E - Onkyo, Osaka Denki Onkyo K.K.;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 210 x 347 x 363 mm / 8.3 x 13.7 x 14.3 inch
  • Notes

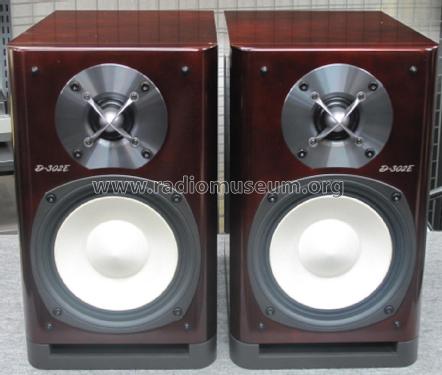

  • Onkyo 2-Way 2-Driver Speaker System Model D-302E.
    Frequency Response: 34 Hz to 100 kHz
    Power Handling: 200 Watts
    Nominal Impedance 4 ohms
    Sensitivity: 83 dB/W/m
    Crossover Frequency 2000Hz
    Drivers:
    Bass: 1x 160mm Cone Type

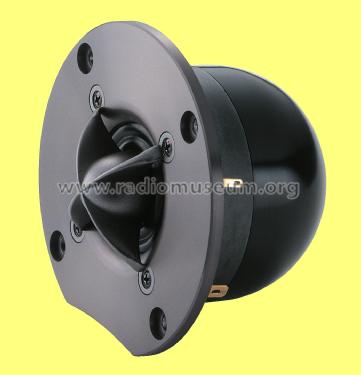

    Tweeter: 1x 40mm Ring-Dome drive
    Enclosure: 15,2 litres, bass reflex system

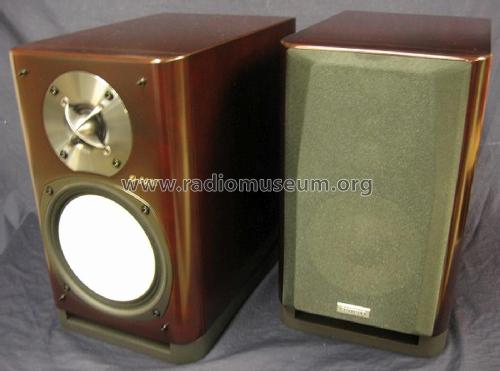

    Detachable Grille
    Optional Speaker Stands: Onkyo AS-1E (B) Black

  • Net weight (2.2 lb = 1 kg)
  • 10.8 kg / 23 lb 12.6 oz (23.789 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
