• Country
• Japan

• Manufacturer / Brand
• Onkyo, Osaka Denki Onkyo K.K.; Osaka

• Year
• 1993 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 222683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

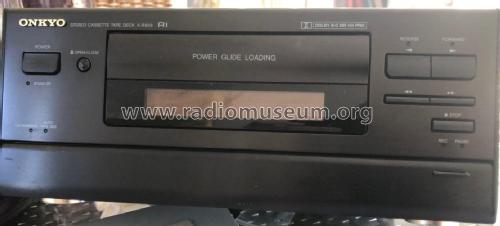

• Model: Stereo Cassette Tape Deck K-R609 - Onkyo, Osaka Denki Onkyo K.K.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 175 x 118 x 313 mm / 6.9 x 4.6 x 12.3 inch

• Notes

• Onkyo Stereo Cassette Tape Deck Model K-R609.
  Quick Autoreverse, Auto-Space
  Dolby B+C, HX Pro
  Wow & Flutter 0,07%
  Frequency Response 20 - 17000Hz Metal
  S/N Ratio (Metal, Dolby NR Off) 56dB
  Auto Tape Selector
  Music Search System
  FL Display with 9-Segment Peak-Level Meter
  RI - Remote Control System compatible
  Power Glide Loading
  Finish:
  Black or Silver (Depending on area sold)

  Power Requirements:
  230VAC 50Hz
  120/220VAC switchable 50/60Hz



• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in
• -- Original prospect or advert (Onkyo Katalog 1993/94)
