Stereo Graphic Equalizer PE-33

Onkyo, Osaka Denki Onkyo K.K.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1982/1983
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 270125

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Graphic Equalizer PE-33 - Onkyo, Osaka Denki Onkyo K.K.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 330 x 101 x 233 mm / 13 x 4 x 9.2 inch
  • Notes

  • Onkyo Stereo Graphic Equalizer Model PE-33.

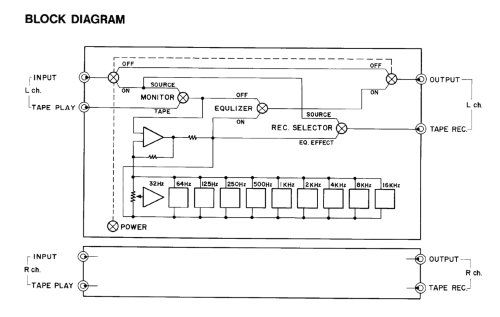

    Frequency Response 10 - 50000Hz +0, -0,5 dB
    0,01% THD at 10 - 20000Hz
    Control Range: ± 12dB
    Frequency Bands: 32, 64, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
    Semiconductors: 13 x IC, 30 x diodes, 6 x transistors


    Power Requirements:
    USA, Canada Model - 120VAC 60Hz, AC Outlet 120VAC max. 200 Watts Unswitched
    Australia, UK Model - 240VAC 50Hz
    Europe & Others - AC 120/220V, 50/60Hz

  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
