Digital Synthesized FM Tuner T-909

Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 527352) Radio Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 527355) Radio
Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 527353) Radio Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 527354) Radio
Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 2139464) Radio Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 2139465) Radio
Use red slider bar for more.
Digital Synthesized FM Tuner T-909; Onkyo, Osaka Denki (ID = 527352) Radio

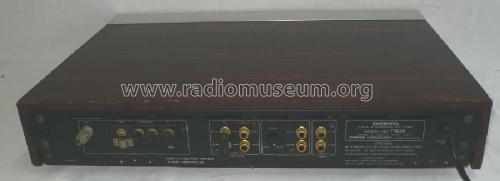

Onkyo, Osaka Denki: Digital Synthesized FM Tuner T-909 [Radio] ID = 527352 900x433
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Synthesized FM Tuner T-909, Onkyo, Osaka Denki Onkyo K.K.; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 48:
Main principle PLL, Phase-locked loop; ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Digital Synthesized FM Tuner T-909 - Onkyo, Osaka Denki Onkyo K.K.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 83 x 353 mm / 17.7 x 3.3 x 13.9 inch
Notes

Onkyo Digital Synthesized FM Tuner Model T-909.
Frequency Range : 87,5 - 103,95 MHz
30 - 16000Hz (+0,5, -2 dB)
7 FM Station presets
Semiconductors:
3x FET's, 59x IC's, 48x Transistors, 60x Diodes

Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)
Mentioned in -- Original prospect or advert (Onkyo Flyer)
Literature/Schematics (1) Funkschau (21/1978, S. 1005)

Model page created by Peter Böhm. See "Data change" for further contributors.
