Stereo Cassette Tape Deck TA-201

Onkyo, Osaka Denki Onkyo K.K.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1991
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 153552

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck TA-201 - Onkyo, Osaka Denki Onkyo K.K.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 120 x 308 mm / 17.7 x 4.7 x 12.1 inch
  • Notes

  • Onkyo Stereo Cassette Tape Deck Model TA-201.
    Frontloading 2-Head Stereo Cassette Tape Deck with Dolby B + C, Dolby HX Pro and Metal Tape Capability.
    2 Motor Full Logic Control
    MPX Filter, Fully Automatic Tape Selector
    Electronic Tape Counter, 10-Segment Peak Level Meter
    Frequency Response: 20 Hz to 19 kHz (Metal tape)
    Signal to Noise Ratio: 58 dB (Dolby C)
    Wow and Flutter: 0.07%
    Input: 80 mV (line)
    Output: 0.5 V (line)
    RI - Remote Control System Compatible
    Power Supply Rating:
    AC 120V 60Hz for USA and Canada
    AC 230V 50Hz
    AC 240V 50Hz
    AC 120/220V switchable 50/60Hz for worldwide models (4 Types)

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 250.00 $
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Literature/Schematics (1)

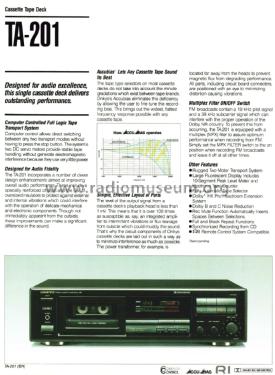

  • -- Original prospect or advert (Onkyo Catalogue - High Fidelity)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
