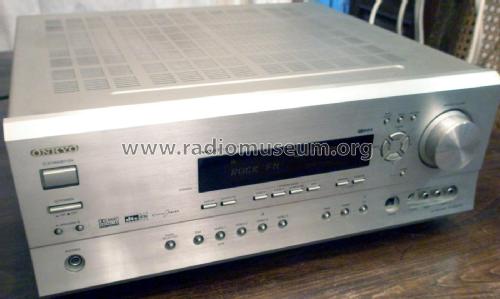

TX-SR600E
Onkyo, Osaka Denki Onkyo K.K.; Osaka
- Country
- Japan
- Manufacturer / Brand
- Onkyo, Osaka Denki Onkyo K.K.; Osaka
- Year
- 1998 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295022

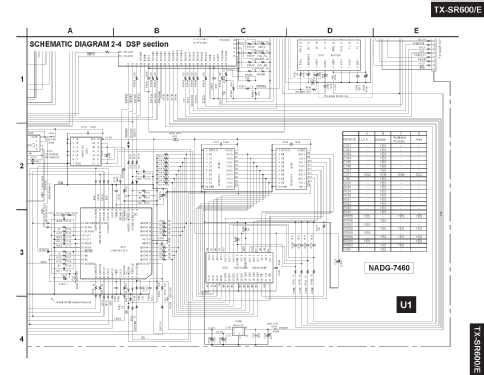

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 230-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 210 W (290 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: TX-SR600E - Onkyo, Osaka Denki Onkyo K.K.;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 435 x 175 x 432 mm / 17.1 x 6.9 x 17 inch
- Notes
-
6-channel full band power amplifier: FL, FC, FR, RL, RC, RR
- Net weight (2.2 lb = 1 kg)
- 12.1 kg / 26 lb 10.4 oz (26.652 lb)
- Author
- Model page created by Carlos Saavedra. See "Data change" for further contributors.
