U-3500

U-3500; Onkyo, Osaka Denki (ID = 677856) Speaker-P
Use red slider bar for more.
U-3500; Onkyo, Osaka Denki (ID = 677856) Speaker-P

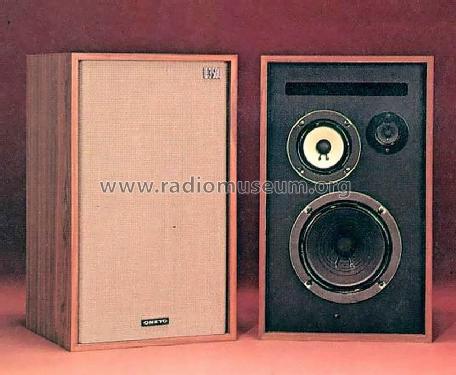

Onkyo, Osaka Denki: U-3500 [Speaker-P] ID = 677856 852x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model U-3500, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Prospekt

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1972 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: U-3500 - Onkyo, Osaka Denki Onkyo K.K.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 322 x 534 x 290 mm / 12.7 x 21 x 11.4 inch
Notes 3-Weg-Bassreflex-Standbox, 40 Watt Musik, 8 Ohm, 45 - 20.000Hz.
200mm TT, 120mm MT, 50mm HT.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
