U-5000

U-5000; Onkyo, Osaka Denki (ID = 677847) Speaker-P
Use red slider bar for more.
U-5000; Onkyo, Osaka Denki (ID = 677847) Speaker-P

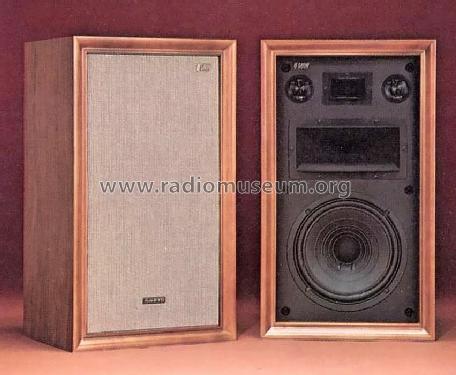

Onkyo, Osaka Denki: U-5000 [Speaker-P] ID = 677847 853x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model U-5000, Onkyo, Osaka Denki Onkyo K.K.; Osaka:
Prospekt

Country:  Japan
Manufacturer / Brand:  Onkyo, Osaka Denki Onkyo K.K.; Osaka
Year: 1972 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: U-5000 - Onkyo, Osaka Denki Onkyo K.K.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 376 x 650 x 295 mm / 14.8 x 25.6 x 11.6 inch
Notes 3-Weg-Standbox, 40 Watt Musik, 8 Ohm, 40 - 20.000Hz.
250mm TT, MT-Horn, HT-Horn.
Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Onkyo, Osaka Denki Onkyo K.K.; Osaka
Here you find 623 models, 599 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
