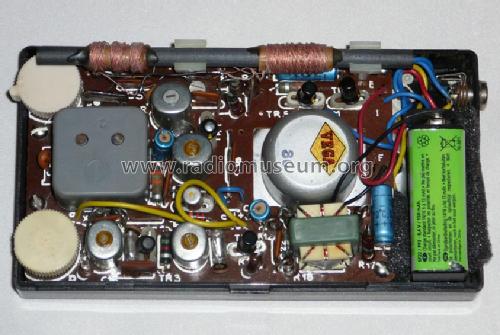

Melbourne ; Optalix, T.E.D.; (ID = 432846) Radio Melbourne ; Optalix, T.E.D.; (ID = 432849) Radio
Melbourne ; Optalix, T.E.D.; (ID = 432851) Radio Melbourne ; Optalix, T.E.D.; (ID = 432847) Radio
Melbourne ; Optalix, T.E.D.; (ID = 432848) Radio Melbourne ; Optalix, T.E.D.; (ID = 432850) Radio
Melbourne ; Optalix, T.E.D.; (ID = 437049) Radio Melbourne ; Optalix, T.E.D.; (ID = 437050) Radio
Melbourne ; Optalix, T.E.D.; (ID = 437052) Radio Melbourne ; Optalix, T.E.D.; (ID = 437054) Radio
Use red slider bar for more.
Melbourne ; Optalix, T.E.D.; (ID = 432846) Radio
Optalix, T.E.D.;: Melbourne [Radio] ID = 432846 886x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melbourne, Optalix, T.E.D.; Amiens, Paris, Aubervilliers:
Melbourne TED,1964

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: SFT108 SFT107 SFT106 SFT352 SFT322 SFT322 SFD106
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Melbourne - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 78 x 35 mm / 5.5 x 3.1 x 1.4 inch
Notes Etait vendu en kit par EUROKIT. La housse cuir est en option. La pile de 9V était d'un modèle qui n'existe plus, remplacée par une 6F22.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 79.00 FF
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Olivier Palix. See "Data change" for further contributors.
