Orly OC T298

Orly OC T298; Optalix, T.E.D.; (ID = 1501551) Radio Orly OC T298; Optalix, T.E.D.; (ID = 1501550) Radio

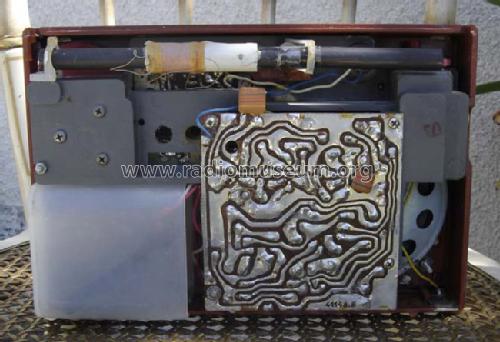

Orly OC T298; Optalix, T.E.D.; (ID = 1501549) Radio Orly OC T298; Optalix, T.E.D.; (ID = 1501553) Radio
Orly OC T298; Optalix, T.E.D.; (ID = 1501554) Radio
Use red slider bar for more.
Orly OC T298; Optalix, T.E.D.; (ID = 1501551) Radio
Optalix, T.E.D.;: Orly OC T298 [Radio] ID = 1501551 681x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orly OC T298, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT317 SFT319 SFT319 SFT353 SFT323 SFT323 SFD107
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.27 W (max.)
from Radiomuseum.org Model: Orly OC T298 - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 140 x 60 mm / 8.3 x 5.5 x 2.4 inch
Notes

2 gammes d'ondes: PO 520 à 1640 Kcs, OC 5,9 à 16,4 MHz. Antenne télescopique. Prise écouteur. HP z = 25 ohms.

Voir aussi modèle Orly avec PO et GO.

Mentioned in -- Schematic

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
