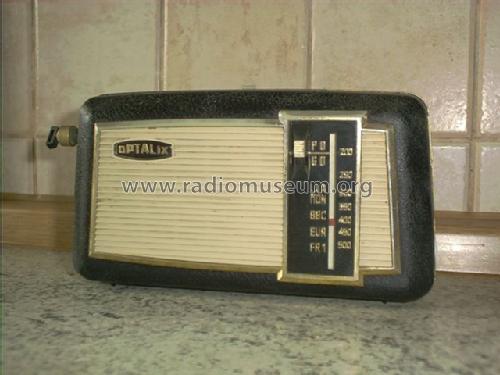

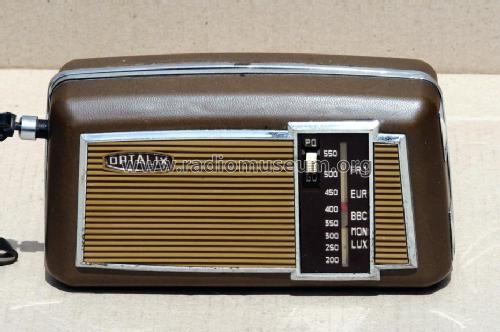

St. James (1) Ch= 30968 type A
Optalix, T.E.D.;: St. James Ch= 30968 [Radio] ID = 1466946 933x620
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
TED, Technique et Décoration | ||||
|---|---|---|---|---|---|
| Year: 1966/1967 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: SFT320 AF127 AF127 AC125 AC132 AC132 OA90 |
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 4,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch |
| Power out | 0.275 W (unknown quality) |
| from Radiomuseum.org | Model: St. James Ch= 30968 [type A] - Optalix, T.E.D.; Amiens, Paris |
| Material | Leather / canvas / plastic - over other material |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 186 x 105 x 60 mm / 7.3 x 4.1 x 2.4 inch |

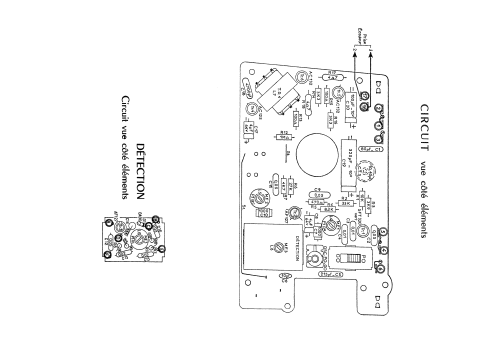

| Notes | 2 gammes d'ondes : PO de 185 à 578 m, GO de 1110 à 2000 m. Cadre ferrocapteur de 14 cm. Prises écouteur avec coupure du HP intérieur (Z = 25 ohms) et antenne-voiture commutée. Coffret en deux coquilles en matière moulée incassable, gainé en skai. 5 coloris : noir, bordeaux, acajou, vert, pastel. Type A : circuit imprimé 30968-66 ou -67, détection blindé, pas de commutation antenne-cadre. Voir aussi documents techniques. |
| Net weight (2.2 lb = 1 kg) | 0.450 kg / 0 lb 15.9 oz (0.991 lb) |
| Mentioned in | - - Manufacturers Literature (Catalogue pièces de rechange, 1972-1973) |

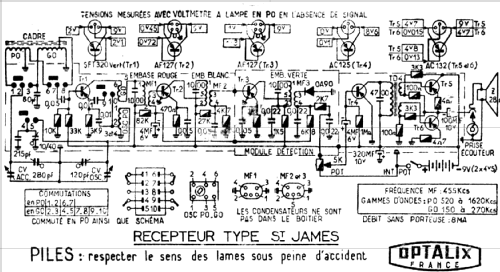

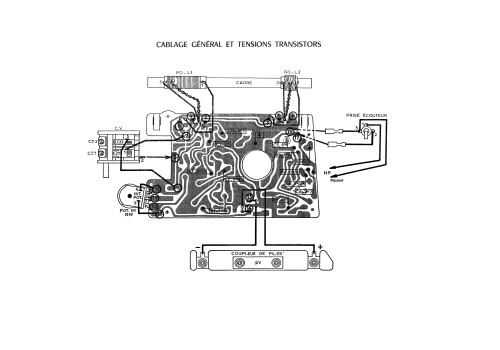

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Michael John. See "Data change" for further contributors.
