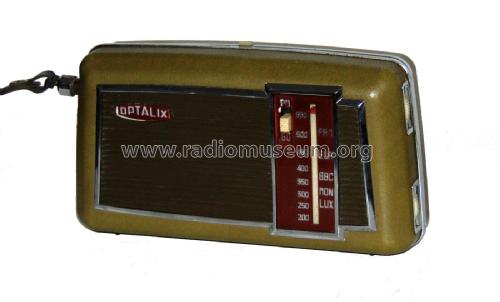

St. James 5 Ch= X620 square grille

St. James 5 Ch= X620; Optalix; Amiens (ID = 2547270) Radio
St. James 5 Ch= X620; Optalix; Amiens (ID = 1273088) Radio St. James 5 Ch= X620; Optalix; Amiens (ID = 1273089) Radio
St. James 5 Ch= X620; Optalix; Amiens (ID = 1273090) Radio St. James 5 Ch= X620; Optalix; Amiens (ID = 1273091) Radio
St. James 5 Ch= X620; Optalix; Amiens (ID = 1273092) Radio St. James 5 Ch= X620; Optalix; Amiens (ID = 1273093) Radio
St. James 5 Ch= X620; Optalix; Amiens (ID = 1273094) Radio St. James 5 Ch= X620; Optalix; Amiens (ID = 1273095) Radio
St. James 5 Ch= X620; Optalix; Amiens (ID = 2060258) Radio St. James 5 Ch= X620; Optalix; Amiens (ID = 2168848) Radio
Use red slider bar for more.
St. James 5 Ch= X620; Optalix; Amiens (ID = 1273088) Radio
Optalix; Amiens: St. James 5 Ch= X620 [Radio] ID = 1273088 933x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model St. James 5 Ch= X620 square grille, Optalix; Amiens

Country:  France
Manufacturer / Brand:  Optalix; Amiens
alternative name

TED, Technique et Décoration
Year: 1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF233 BF233 BF233 BC208 BC205 BC328 BC338 SFD107 SFD107 BZX62
Main principle Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: St. James 5 Ch= X620 [square grille] - Optalix; Amiens
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 186 x 105 x 60 mm / 7.3 x 4.1 x 2.4 inch
Notes

2 gammes d'ondes : PO de 185 à 578 m, GO de 1110 à 2000 m. Cadre ferrocapteur de 14 cm. Prises écouteur avec coupure du HP intérieur (Z = 22 ohms) et antenne-voiture commutée.

Coffret en deux coquilles en matière moulée incassable, gainé en skai.

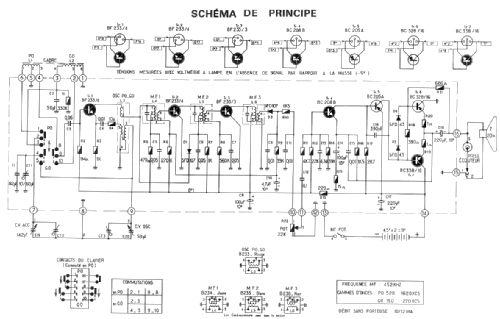

Circuit imprimé X620. Certains modèles sont équipés de différents transistors (ex. BF253, BC238 et BC308).

Net weight (2.2 lb = 1 kg) 0.490 kg / 1 lb 1.3 oz (1.079 lb)
Mentioned in -- Original-techn. papers.

Model page created by Michael Schott. See "Data change" for further contributors.
