St. James 5 (?) Ch= X674

St. James 5 Ch= X674; Optalix, T.E.D.; (ID = 1418173) Radio St. James 5 Ch= X674; Optalix, T.E.D.; (ID = 1418175) Radio

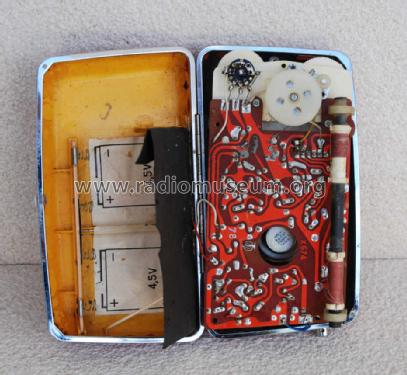

St. James 5 Ch= X674; Optalix, T.E.D.; (ID = 1418176) Radio St. James 5 Ch= X674; Optalix, T.E.D.; (ID = 1418177) Radio
Use red slider bar for more.
St. James 5 Ch= X674; Optalix, T.E.D.; (ID = 1418173) Radio
Optalix, T.E.D.;: St. James 5 Ch= X674 [Radio] ID = 1418173 933x631
Select picture or schematic to display from thumbnails on the right and click for download.
For model St. James 5 (?) Ch= X674, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF253 BF253 BF253 BC238 BC308 BC338 BC328
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out
from Radiomuseum.org Model: St. James 5 Ch= X674 - Optalix, T.E.D.; Amiens, Paris
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 190 x 105 x 60 mm / 7.5 x 4.1 x 2.4 inch
Net weight (2.2 lb = 1 kg) 0.440 kg / 0 lb 15.5 oz (0.969 lb)

Model page created by José Manuel Silvestre. See "Data change" for further contributors.
