Studio S (Studio 3, Silicium) Secteur PO-GO

Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463011) Radio

Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463012) Radio

Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463013) Radio

Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463014) Radio

Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463015) Radio

Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463016) Radio
Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1469630) Radio Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1463017) Radio
Use red slider bar for more.
Studio S Secteur PO-GO; Optalix, T.E.D.; (ID = 1469630) Radio
Optalix, T.E.D.;: Studio S Secteur PO-GO [Radio] ID = 1469630 700x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model Studio S (Studio 3, Silicium) Secteur PO-GO, Optalix, T.E.D.; Amiens, Paris, Aubervilliers:
Avec permission de Guy Piard.

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF194 BF195 BF195 BC148 AC188 AC187 AC125 AC128 OA92 OA92 BAX13 BYX36 BYX36 BZY88
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Studio S Secteur PO-GO - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 315 x 155 x 125 mm / 12.4 x 6.1 x 4.9 inch
Notes

2 gammes d'ondes PO 183 à 578 m, GO 1110 à 2000 m. Alimentation conformément à la documentation du service: 127/240 V.

Coffret seulement en couleur imitation bois.



Net weight (2.2 lb = 1 kg) 1.380 kg / 3 lb 0.6 oz (3.04 lb)
Mentioned in Le grand livre de la TSF (Doctsf Ref 24892)

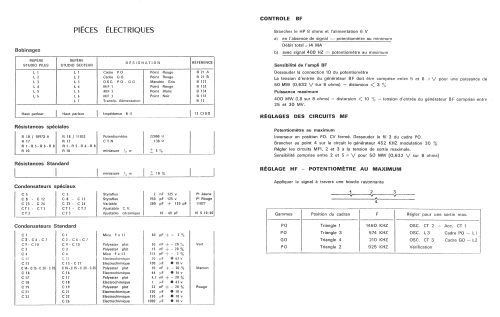

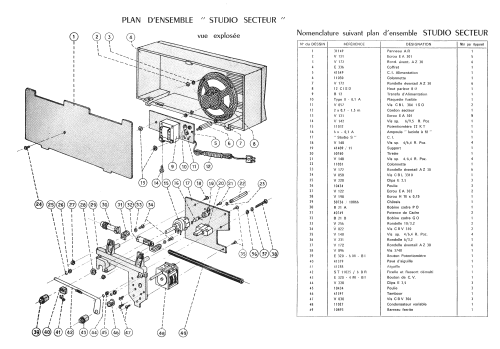

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
