• Year
  • 1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89933
    • alternative name: TED, Technique et Décoration

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / AA: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
  • Power out
  • 0.23 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

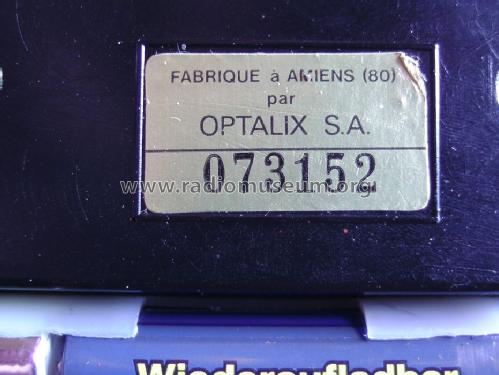

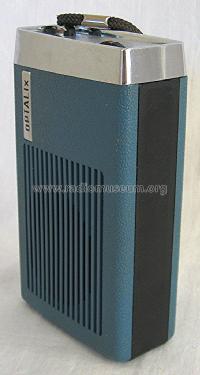

  • Model: TO99 Ch= X614 - Optalix, T.E.D., Faco; Amiens,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 148 x 87 x 43 mm / 5.8 x 3.4 x 1.7 inch
  • Notes
  • 2 gammes d'ondes : PO de 185 à 578 m (1620 à 520 kHz), GO de 1110 à 2000 m (270 à 150 kHz). Antenne ferrite de 11 cm. Prise écouteur ou HPS avec coupure du HP.

  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original prospect or advert
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
