TO180

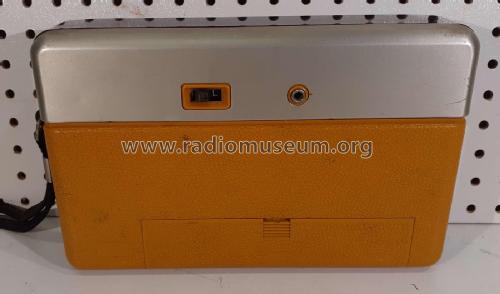

TO180; Optalix, T.E.D.; (ID = 2563769) Radio
TO180; Optalix, T.E.D.; (ID = 2563719) Radio TO180; Optalix, T.E.D.; (ID = 2563721) Radio
TO180; Optalix, T.E.D.; (ID = 2563720) Radio
Use red slider bar for more.
TO180; Optalix, T.E.D.; (ID = 2563719) Radio
Optalix, T.E.D.;: TO180 [Radio] ID = 2563719 1400x765
Select picture or schematic to display from thumbnails on the right and click for download.
For model TO180, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1977 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF253 BF253 BF253 BC238 BC308 BC328 BC338 SFD107
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out
from Radiomuseum.org Model: TO180 - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 110 x 45 mm / 6.9 x 4.3 x 1.8 inch

Model page created by Didier Tholomier. See "Data change" for further contributors.
