TO200

TO200; Optalix, T.E.D.; (ID = 692442) Radio
TO200; Optalix, T.E.D.; (ID = 325062) Radio TO200; Optalix, T.E.D.; (ID = 325063) Radio
TO200; Optalix, T.E.D.; (ID = 568869) Radio TO200; Optalix, T.E.D.; (ID = 795408) Radio
TO200; Optalix, T.E.D.; (ID = 795409) Radio TO200; Optalix, T.E.D.; (ID = 795410) Radio
TO200; Optalix, T.E.D.; (ID = 795411) Radio TO200; Optalix, T.E.D.; (ID = 795412) Radio
Use red slider bar for more.
TO200; Optalix, T.E.D.; (ID = 325062) Radio
Optalix, T.E.D.;: TO200 [Radio] ID = 325062 640x385

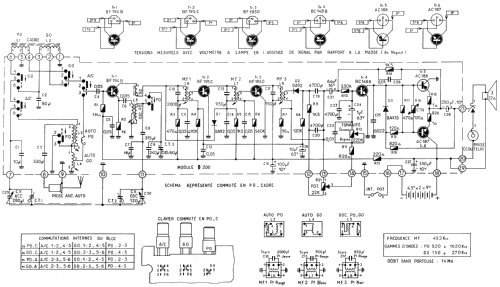

Select picture or schematic to display from thumbnails on the right and click for download.
For model TO200, Optalix, T.E.D.; Amiens, Paris, Aubervilliers:
own collection

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: BF194 BF195 BF195 BC148 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: TO200 - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 133 x 60 mm / 9.1 x 5.2 x 2.4 inch

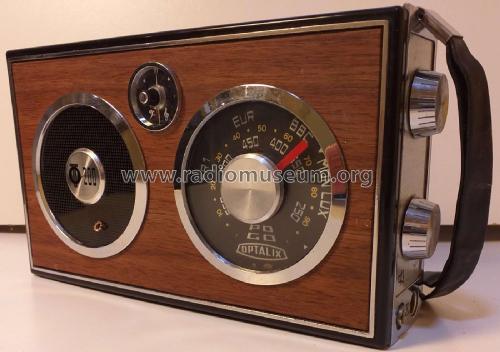

Notes Optalix TO 200 portable Radio, carrying strap, headphone and external antenna socket, tone control.
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Source of data - - Data from my own collection

Model page created by Didier Tholomier. See "Data change" for further contributors.



All listed radios etc. from Optalix, T.E.D.; Amiens, Paris, Aubervilliers
Here you find 69 models, 58 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
