TO208

TO208; Optalix, T.E.D.; (ID = 2175953) Radio TO208; Optalix, T.E.D.; (ID = 2175954) Radio

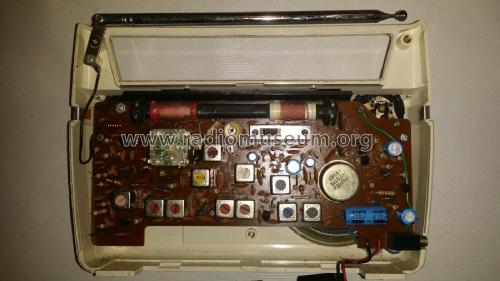

TO208; Optalix, T.E.D.; (ID = 2175955) Radio
Use red slider bar for more.
TO208; Optalix, T.E.D.; (ID = 2175953) Radio
Optalix, T.E.D.;: TO208 [Radio] ID = 2175953 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model TO208, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1980 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF254 BF255 BF255 BF253 BF253 BF253 BC238 BC308 BC338 BC328 AA119 AA119 AA119
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / UM3: 4 x 1,5 / DC 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out
from Radiomuseum.org Model: TO208 - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 195 x 140 x 45 mm / 7.7 x 5.5 x 1.8 inch
Notes

Prise pour alimentation extérieure 6 VDC.

Mentioned in - - Manufacturers Literature

Model page created by Didier Tholomier. See "Data change" for further contributors.



All listed radios etc. from Optalix, T.E.D.; Amiens, Paris, Aubervilliers
Here you find 69 models, 58 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
