TO503; Optalix, T.E.D.; (ID = 1895072) Radio
TO503; Optalix, T.E.D.; (ID = 1895272) Radio TO503; Optalix, T.E.D.; (ID = 1895273) Radio
TO503; Optalix, T.E.D.; (ID = 1946944) Radio TO503; Optalix, T.E.D.; (ID = 1946945) Radio
TO503; Optalix, T.E.D.; (ID = 1946947) Radio TO503; Optalix, T.E.D.; (ID = 1946949) Radio
Use red slider bar for more.
TO503; Optalix, T.E.D.; (ID = 1895272) Radio

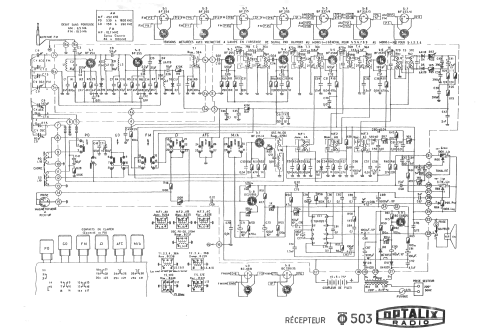

Optalix, T.E.D.;: TO503 [Radio] ID = 1895272 1000x754
Select picture or schematic to display from thumbnails on the right and click for download.
For model TO503, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF254 BF255 BF255 BF255 BF233 BF233 BF233 BC208 BC338 TBA820 AA119 SFD107 1N4001 BZX85
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: TO503 - Optalix, T.E.D.; Amiens, Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 210 x 85 mm / 11.4 x 8.3 x 3.3 inch
Notes

3 gammes d'ondes: GO de 150 à 260 kHz, PO de 530 à 1605 kHz, et FM de 86 à 108 MHz. Clavier 6 touches dont pick-up et AFC. Antenne télescopique. Prises écouteur et magnéto/pick-up. HP Z = 4 ohms.

Coffret gainé, 3 coloris au choix.


Klangregelung: Bässe und Höhen mit Schiebereglern.

NF-Verstärker: IC TBA820

Net weight (2.2 lb = 1 kg) 2.105 kg / 4 lb 10.2 oz (4.637 lb)
Literature/Schematics (1) -- Schematic

Model page created by Wolfgang Grafeneder. See "Data change" for further contributors.



All listed radios etc. from Optalix, T.E.D.; Amiens, Paris, Aubervilliers
Here you find 69 models, 58 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
