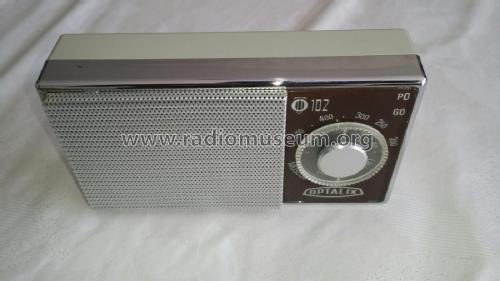

TO102; Optalix, T.E.D.; (ID = 1882595) Radio TO102; Optalix, T.E.D.; (ID = 2099371) Radio
Use red slider bar for more.

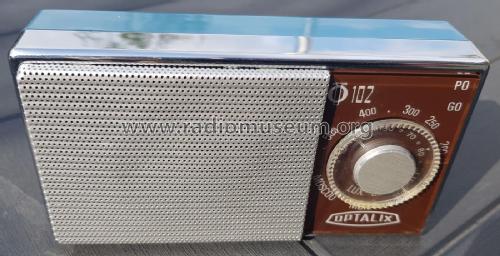

TO102; Optalix, T.E.D.; (ID = 462053) Radio
Optalix, T.E.D.;: TO102 [Radio] ID = 462053 762x399
Select picture or schematic to display from thumbnails on the right and click for download.
For model TO102, Optalix, T.E.D.; Amiens, Paris, Aubervilliers

Country:  France
Manufacturer / Brand:  Optalix, T.E.D.; Amiens, Paris, Aubervilliers
alternative name

TED, Technique et Décoration
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: BF364 BF365 BF365 BC408 PR4_Thomson NR4_Thomson
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: TO102 - Optalix, T.E.D.; Amiens, Paris
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 78 x 40 mm / 5.5 x 3.1 x 1.6 inch

Model page created by Didier Tholomier. See "Data change" for further contributors.
