TO201
Use red slider bar for more.

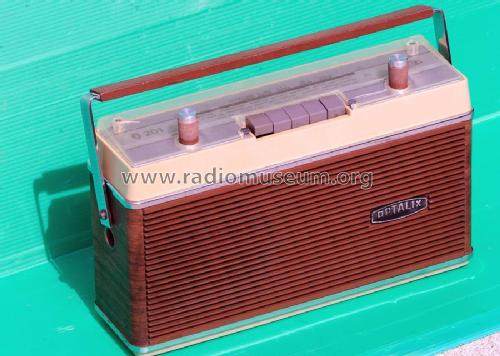

Optalix, T.E.D.;: TO201 [Radio] ID = 1514800 900x641
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
TED, Technique et Décoration | ||||
|---|---|---|---|---|---|
| Year: 1969 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: BC194 BF195 BF195 BC148 AC187 AC188 |
| Main principle | Superheterodyne (common); ZF/IF 452 kHz |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 4,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch |
| Power out | |
| from Radiomuseum.org | Model: TO201 - Optalix, T.E.D.; Amiens, Paris |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 270 x 160 x 70 mm / 10.6 x 6.3 x 2.8 inch |
| Net weight (2.2 lb = 1 kg) | 1.5 kg / 3 lb 4.9 oz (3.304 lb) |
Model page created by André Perou. See "Data change" for further contributors.
