TO79
Optalix, T.E.D.;: TO79 [Radio] ID = 2269597 1117x625

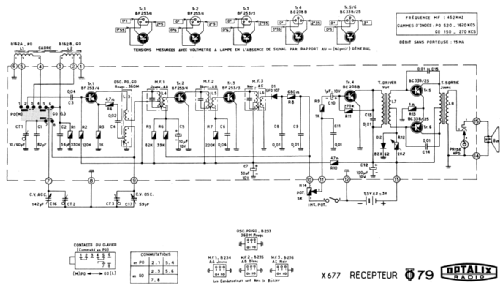

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
TED, Technique et Décoration | ||||
|---|---|---|---|---|---|
| Year: 1979 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: BF253 BF253 BF253 BC238 BC338 BC338 SFD107 BZX62 |
| Main principle | Superheterodyne (common); ZF/IF 452 kHz |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch |
| Power out | |
| from Radiomuseum.org | Model: TO79 - Optalix, T.E.D.; Amiens, Paris |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 117 x 74 x 34 mm / 4.6 x 2.9 x 1.3 inch |
| Notes | Le Grand Livre a l'année 1969 pour ce modèle, que nous estimons mauvais. Le catalogue des pièces de rechange Optalix 1972-1973 comporte un tableau chronologique des récepteurs à partir de 1963 dans laquelle le TO79 est pas mentionnée. |
| Net weight (2.2 lb = 1 kg) | 0.5 kg / 1 lb 1.6 oz (1.101 lb) |
| Mentioned in | Le grand livre de la TSF (Doctsf Ref 24619, année 1969) |
Model page created by Jean-Louis Buton. See "Data change" for further contributors.
