• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 239167

• • alternative name: Pla Hermanos y Cía

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• DY51 A28-13W

• Number of Transistors
• 28

• Semiconductors
• AF121 AF121 AF181 AF121 AF115 AF118 AF115 AF115 AC128 AC127 AC128 AC127 AC130 AC127 OC44 OC45 OC45 OC44 AC127 AD149 AD149 AC127 OC45 AC130 OC44 AC128 AC128 AU103

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 3 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Fénix 11" - Optimus; Gerona

• Shape
• Tablemodel, with any shape - general.

• Notes

• Optimus, Plá Hermanos y Cía; televisor Fenix

  TV B/N 11"
  F.I. de sonido 33,4 Mc/s
  Sistema de sonido por interportadoras: F.I. 5,5 Mc/s

• Mentioned in
• 50 Esquemas Comentados por el Prof. J. Vázquez De Abarrategui

• Literature/Schematics (1)

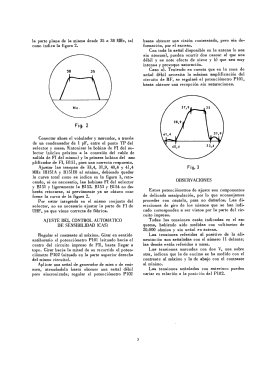

• -- Schematic (Esquemario TV REDE, Tomo V, 1969)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
