- Country
- France
- Manufacturer / Brand
- ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144604
Dépliant 1950
Dépliant 1950

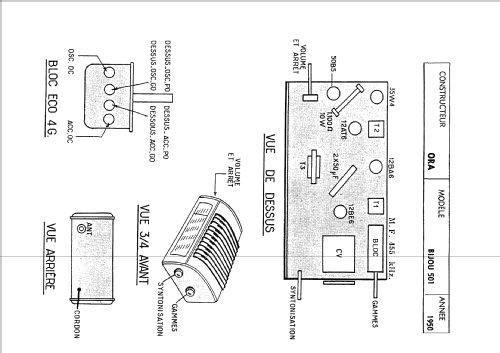

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Bijou 501 - ORA, Oradyne, Gérard & Cie,
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 290 x 195 x 145 mm / 11.4 x 7.7 x 5.7 inch
- Notes
-
H.P. elliptique ticonal de 12 x 19 cm. Lampe echelle: 6V / 0,3 A. Cadran spécial incassable de 260 x 80 mm au plan de Copenhague. 4 gammes d'ondes: GO, PO, OC1, OC2.
Matière moulée et métal.
Voir aussi le modèle Cristal-Grandin Cristalette 502.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Price in first year of sale
- 14,600.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur 1952
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
